Product details

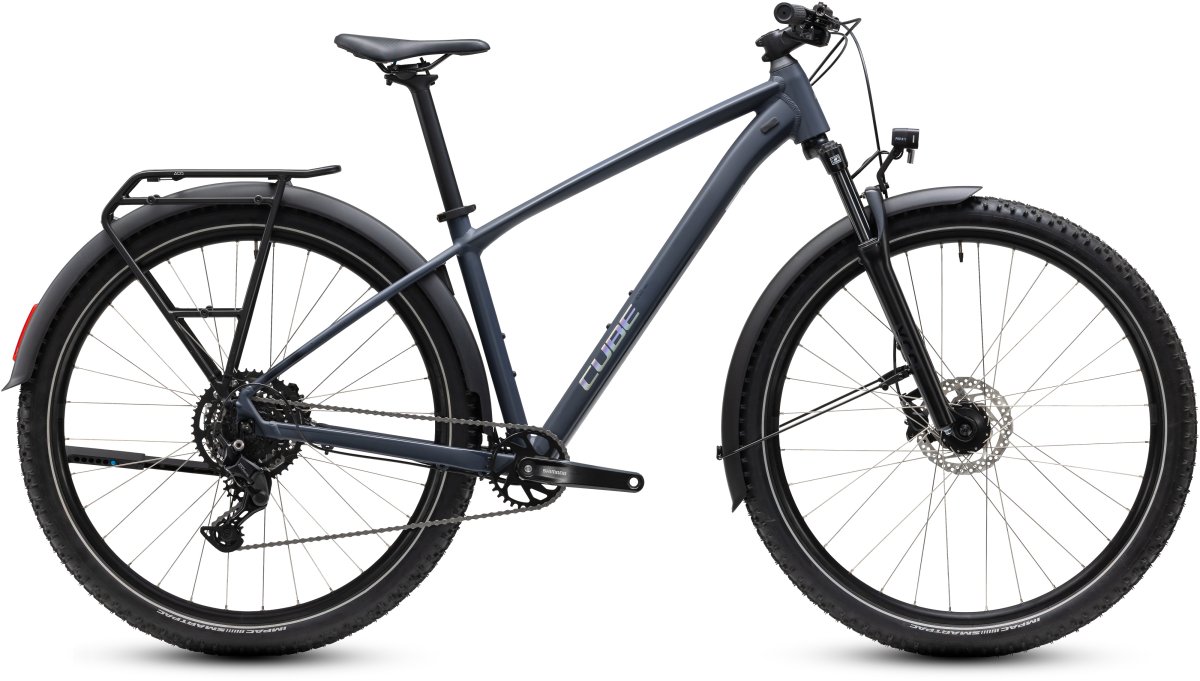

Whether you're heading out on an off-road adventure at the weekend or tackling the weekday commute – or, perhaps, both – the Aim ONE FE has got it covered. Fully Equipped means what it says – lights, mudguards, Semi-Integrated Carrier 2.1 and kickstand are all included. There's a Suntour suspension fork with 100mm of travel to take care of rough roads and bumpy tracks alike, backed up with 2.25in tyres and powerful Shimano hydraulic disc brakes. And, with the wide range and easy shifting of Shimano's 1x9 Cues gears, the right ratio for any scenario is right there at your fingertips.
Frame
- frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- size Size Split: 27.5: XS, S // 29: M, L, XL
Suspension

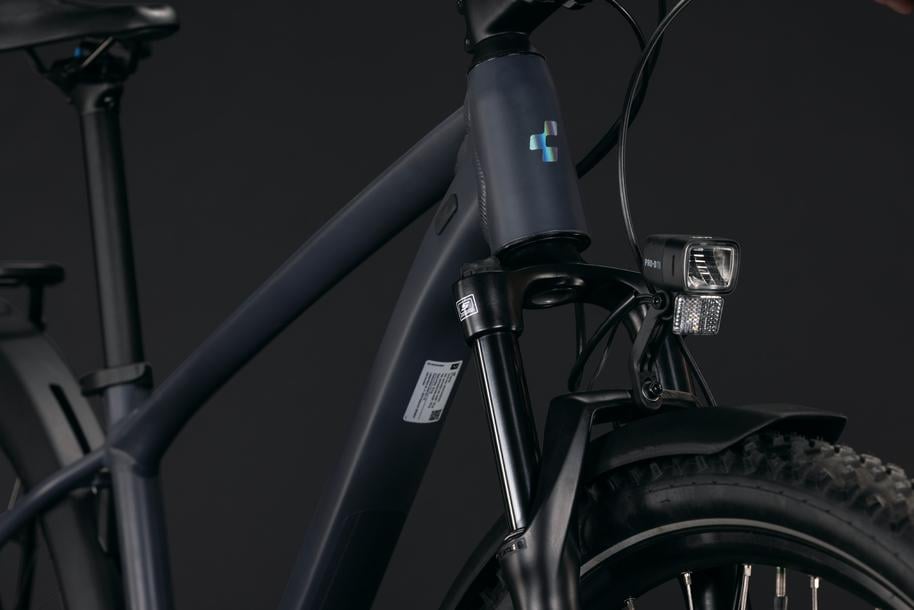

- Suspension fork SR Suntour XCS, 100mm
Drivetrain & brakes
- brake system Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
- rear derailleur Shimano Cues RD-U4000-GS, 9-Speed
- shifters Shimano Cues SL-U4010, Rapidfire-Plus
- bottom bracket Thun Paso-ML, 73mm BSA

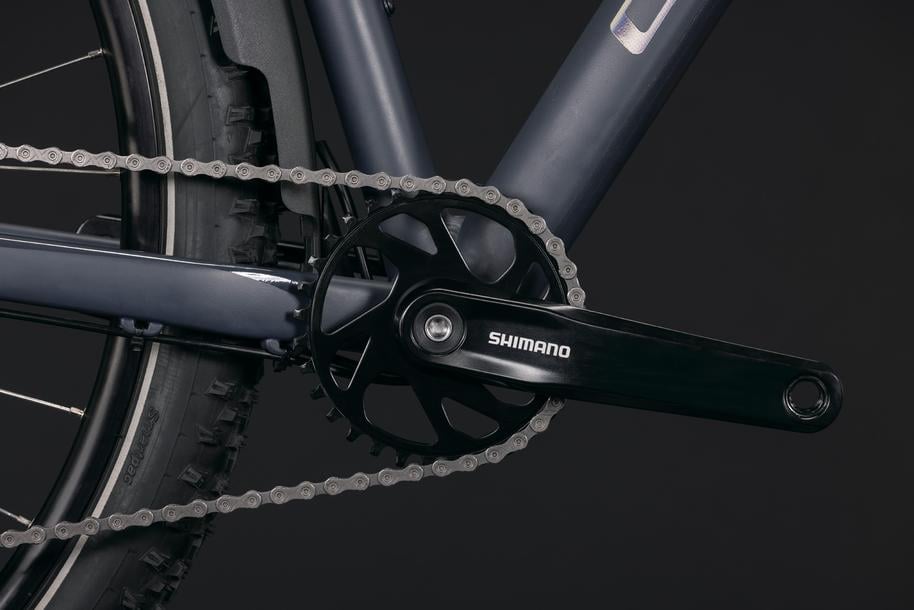

- crankset Shimano Cues FC-UT400, 32T
- cassette Shimano Cues CS-LG300, 11-46T
- chain KMC xGlide
Cockpit
- headset CUBE FPH868p, Tapered, Semi-Integrated
- Stem CUBE Performance Stem, 31.8mm

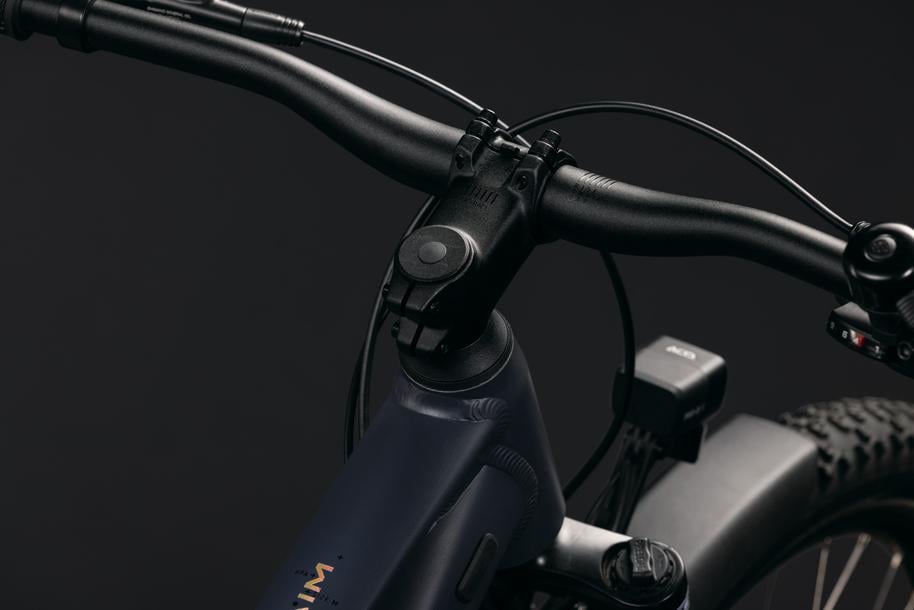

- handlebar CUBE Rise Trail Bar, 680mm
- grips ACID Icon
Wheels
- rims ACID EX25, 32H, Disc, Tubeless Ready
- front hub Shimano DH-3D32, Hub Dynamo, QR
- rear hub ACID Pro, QR, 6-Bolt
- tyres CUBE MTB, Draht, 2.25
Finishing kit
- saddle ACID Venec Lite
- seat post CUBE Performance Post, 30.9mm
- pedals CUBE PP MTB
- front light ACID Pro-D 70
- rear light ACID Pro-D SIC 2.0
- kickstand ACID FM Pure Silent
- mudguards ACID 57 SIC 2.0
- bell ACID

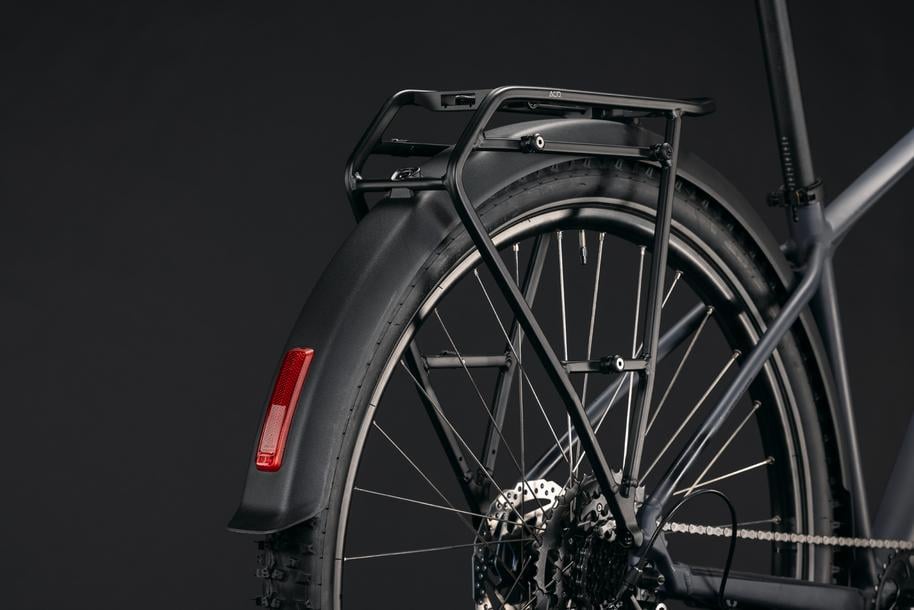

- carrier ACID SIC 2.1 RILink
Product information
- weight 18,0 kg
- Structural Weight 140 kg
- Maximum rider weight 100 kg
- colour mole´n´prism
